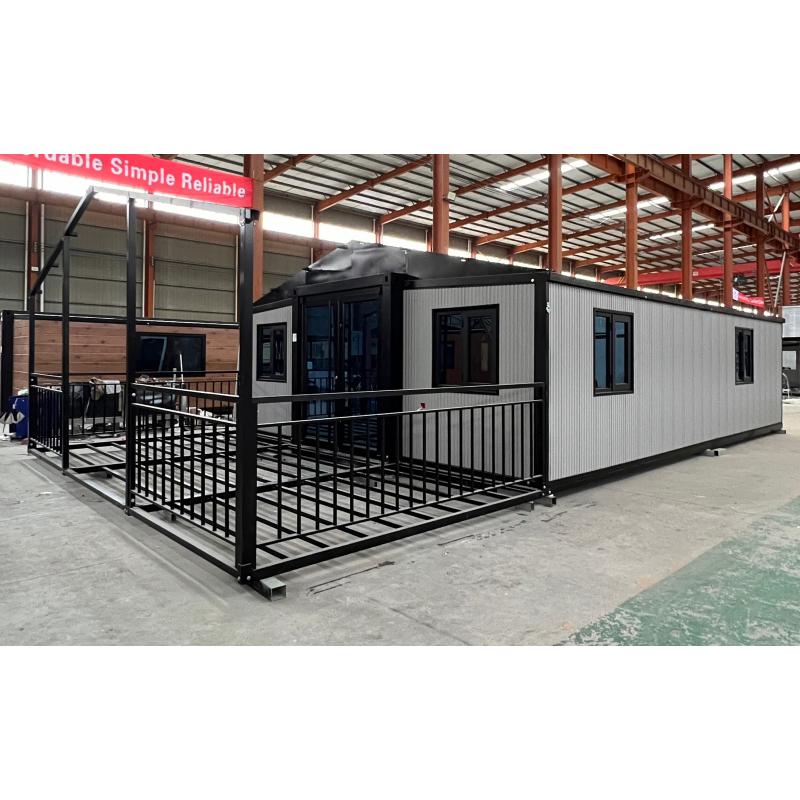

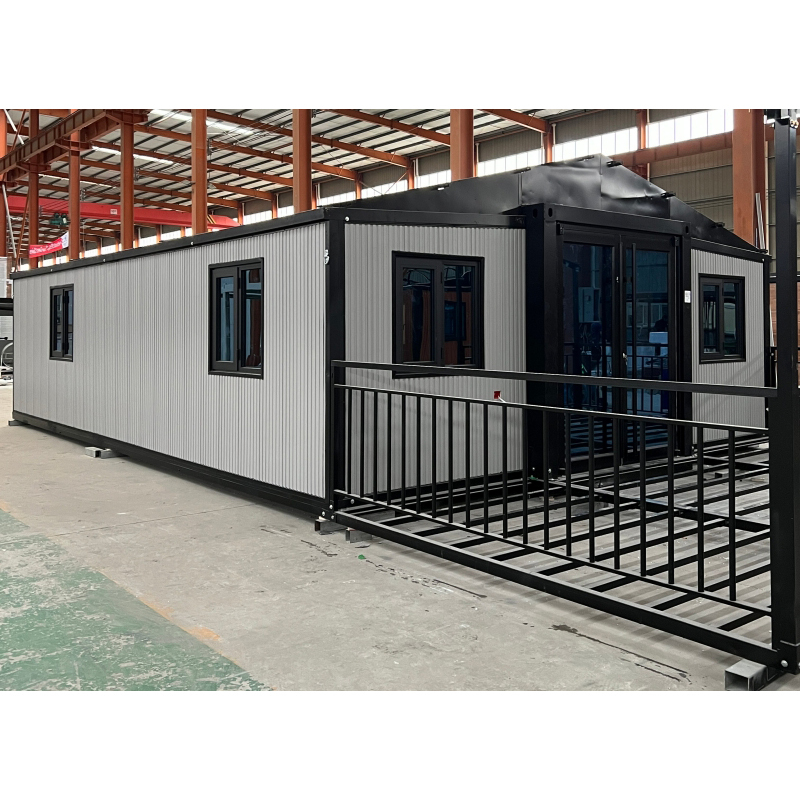

Looking for pre built tiny houses with a larger, flexible floor plan? YJD’s 30FT expandable house is factory-built around a double-wing structure that folds for transport and opens at the site. The product listing gives a floor area of 56.7 m², with 2-bedroom and 3-bedroom layout options shown.
This page focuses on the 30FT model: its dimensions, frame and panel construction, interior choices, transport configuration, and ordering steps. The final specification depends on the selected layout and the written order scope.
The dimensions below are from YJD’s 30FT double-wing parameter sheet. The listing identifies the floor area as 56.7 m². Use the approved product drawing to confirm the final measurement basis and configuration.
| Specification | 30FT reference details | Buyer planning notes |
|---|---|---|
| Listed floor area | 56.7 m² | Shown in the product listing; confirm measurement basis on the approved drawing. |
| Expanded external dimensions | 9,000 × 6,270 × 2,480 mm Side/eave height: 2,180 mm |
Plan the opened footprint and clearance around the house. |
| Internal dimensions | 8,740 × 6,110 × 2,200 mm Side/eave height: 2,060 mm |
Use these dimensions when planning room use and furniture. |
| Folded transport dimensions | 9,000 × 2,200 × 2,480 mm | Check road access, unloading space, and lifting arrangements. |
| Reference weight | 3,500 kg | Coordinate appropriate lifting equipment and site preparation. |
| Main floor beams | Galvanized Q235B steel, 80 × 140 × 2.5 mm | Other frame members use different sections according to their position. |
Specifications are for the 30FT reference model only. The final approved drawing and order specification define production details and selected options.
Pre built container homes can be configured for different occupancy needs. For this 30FT model, compare the 2-bedroom and 3-bedroom layouts based on sleeping capacity, privacy, kitchen access, bathroom location, storage, and circulation space.
The 30FT model combines a galvanized steel frame with sandwich-panel walls and roof. Buyers can choose panel-core and interior options according to the project brief and destination conditions.
| Component | Reference configuration | Options and scope |
|---|---|---|
| Steel frame | Galvanized Q235B steel members | Main floor beams are listed as 80 × 140 × 2.5 mm; other members have separate specifications. |
| Side walls | 75 mm sandwich panels with double-sided 0.3 mm color-coated steel facings | EPS, PU, and rock-wool cores are listed options. |
| Partitions and roof panels | 50 mm sandwich panels with double-sided 0.3 mm steel facings | Confirm the selected core in the order specification. |
| Floor base | 18 mm cement board in the center and 18 mm bamboo plywood on the wings | Finish flooring can be specified as part of the interior fit-out. |
| Electrical baseline | Wiring and circuit arrangement, plus six LED ceiling lights, are listed in the technical sheet | Electrical and outlet requirements can be adapted to the destination; verify local approvals separately. |
| Entry door and windows | Steel security door and uPVC double-glazed casement windows are listed | Alternative aluminum door and window options are available. |
This 30FT expandable tiny house is transported in its folded configuration. Before shipment, coordinate the delivery route, unloading area, lifting equipment, and prepared support base. At the destination, positioning, opening, fixing, and utility connections should follow the instructions for the ordered configuration.
For customization, visit YJD custom prefabricated house options. Review quality information, the modular home buying guide, and the foldable house installation guide.
The product listing states a floor area of 56.7 m². The 30FT technical sheet lists expanded external dimensions of 9,000 × 6,270 mm; refer to the approved drawing for the measurement basis and final layout.
The 30FT reference folded dimensions are 9,000 × 2,200 × 2,480 mm. Confirm packing and delivery details for the selected configuration.
Both layout references are provided for this 30FT product. Confirm the selected floor plan, room positions, and included kitchen and bathroom items in the quotation.
The panel core, doors, windows, electrical setup, and interior fit-out can be specified. The final quotation should clearly list the selected configuration and scope of supply.
Plan the support base, access route, unloading space, lifting equipment, and utility connections. Check local planning and building requirements for the intended site and use.
This page describes the 30FT model only. The approved technical drawing, quotation, and sales contract define the final configuration and scope of supply.
