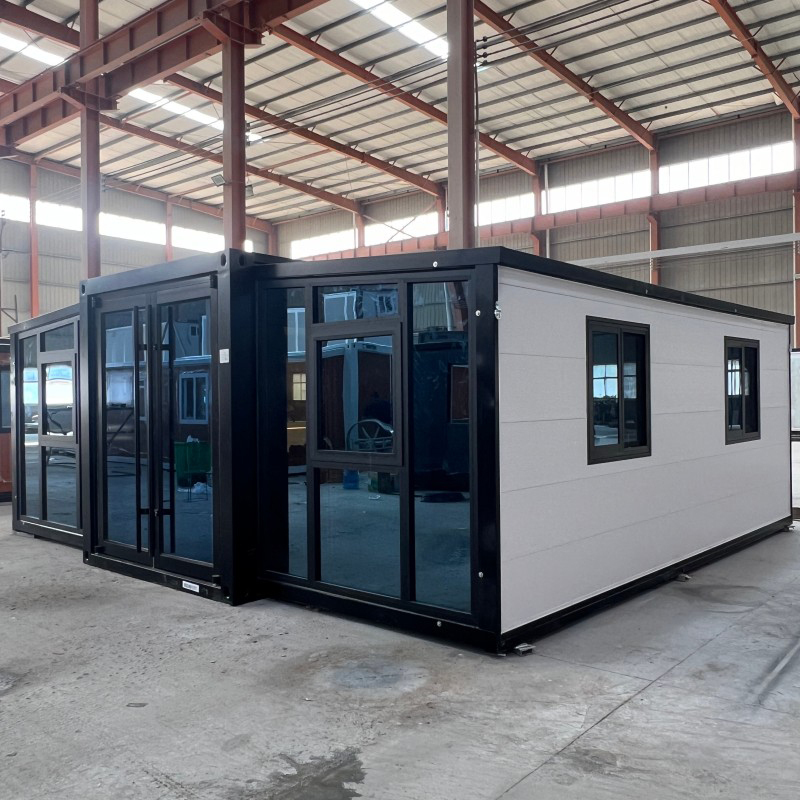

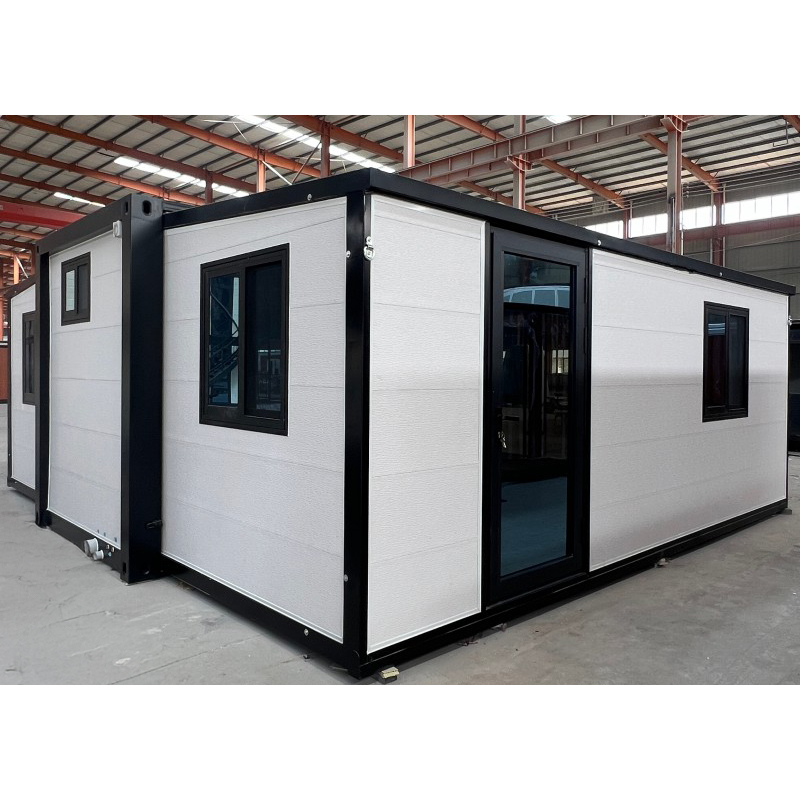

Fold out houses create a wider usable floor plan by folding their side sections inward for transport and opening them at the installation site. This 20ft expandable container house is based on YJD's standard double-wing configuration, with layout and finish options for residential, guest accommodation, and project use.
Its reference expanded footprint is approximately 5.90 m × 6.27 m. The folded transport width is approximately 2.20 m. Use the dimensions below as a starting point for site and logistics planning; the approved drawing and order specification define the exact configuration.
The figures below are taken from YJD's 20ft standard double-wing specification sheet. External footprint and internal clear dimensions are listed separately because they serve different planning needs.
| Specification | Reference dimension or detail | Planning use |
|---|---|---|
| Expanded external dimensions | 5,900 × 6,270 × 2,480 mm Side/eave height noted as 2,180 mm |
Estimate the opened footprint and site clearance |
| Internal dimensions | 5,640 × 6,110 × 2,240 mm Side/eave height noted as 2,060 mm |
Plan furniture, partitions, and circulation |
| Folded transport dimensions | 5,900 × 2,200 × 2,480 mm | Review loading, route access, and unloading space |
| Listed reference weight | 2,500 kg | Coordinate lifting equipment and foundation/site preparation |
| Layout examples | Open-plan, 1-bedroom, 2-bedroom, or 3-bedroom arrangements | Final room arrangement depends on the selected plan and scope |
These are reference figures for the 20ft standard double-wing model, not a substitute for the final production drawing. Confirm the selected layout and options on the order specification.
The 20ft reference specification uses a galvanized steel frame with Q235B steel members. Main beams are listed as 80 × 100 × 2.5 mm, while secondary frame members use different sections according to their location and function.
| Component | 20ft reference specification | Available configuration choices |
|---|---|---|
| Main frame | Galvanized Q235B steel members; main beams listed as 80 × 100 × 2.5 mm | Frame details are confirmed in the product drawing |
| Side walls | 75 mm sandwich panels with double-sided 0.3 mm color-coated steel facings | EPS, PU, or rock-wool core options are listed |
| Partitions and roof panels | 50 mm sandwich panels in the reference sheet | Core selection should be stated in the order specification |
| Floor | 18 mm cement board in the center; 18 mm bamboo plywood on the two wings | Optional floor finishes are available; check the quotation for inclusion |
| Electrical baseline | Wiring and circuit arrangement listed in the 20ft standard sheet; six LED ceiling lights | Wiring and outlet standards can be adapted to destination requirements; confirm applicable approvals separately |
| Door and windows | Steel security entry door and uPVC double-glazed casement windows in the reference configuration | Aluminum and thermal-break options are listed; quantities and openings vary by layout |
Configure the house around the intended occupancy, climate, local electrical requirements, and project budget. The following items are options rather than a promise that every unit includes them.
In transport configuration, the side sections are folded inward. At the destination, the unit is positioned on a prepared, level support base and opened according to the supplied installation instructions. The actual lifting, unfolding, fixing, and utility-connection steps depend on the delivered configuration and site conditions.
For broader planning, see YJD's modular home buying guide and container-house import guide. For product customization, visit custom prefabricated house options; for quality information, see YJD's quality page.
It describes a house whose side sections fold inward for transport and open at the site to create a wider floor plan. The opening method and delivered components should match the specific model and installation instructions.
The standard double-wing reference sheet lists expanded external dimensions of 5,900 × 6,270 × 2,480 mm and internal dimensions of 5,640 × 6,110 × 2,240 mm. Check the approved drawing for the chosen layout and options.
Yes. The reference sheet lists multiple insulation-core and door/window options, and the quote sheet includes several room-layout examples. The selected specifications and any price adjustment should be written into the quotation.
Bathroom, shower, cabinets, and other fit-out items are configurable. Review the itemized quotation to see exactly what is included in your order.
Site preparation, lifting/unloading equipment, opening and fixing work, and utility connections depend on the project. Review the installation guide and agree on responsibilities before shipment. See the foldable house installation guide.
Specifications on this page are reference details from YJD's 20ft standard double-wing sheet. The final approved drawing, quotation, and order contract control the exact product configuration and scope of supply.
